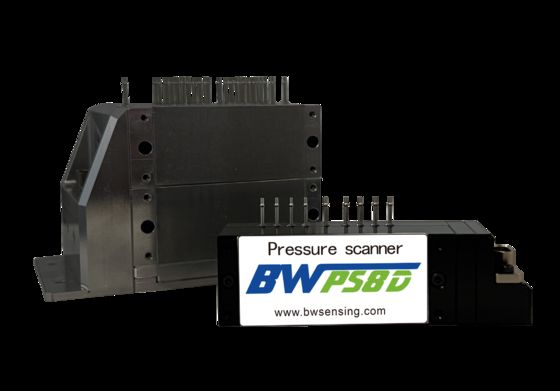

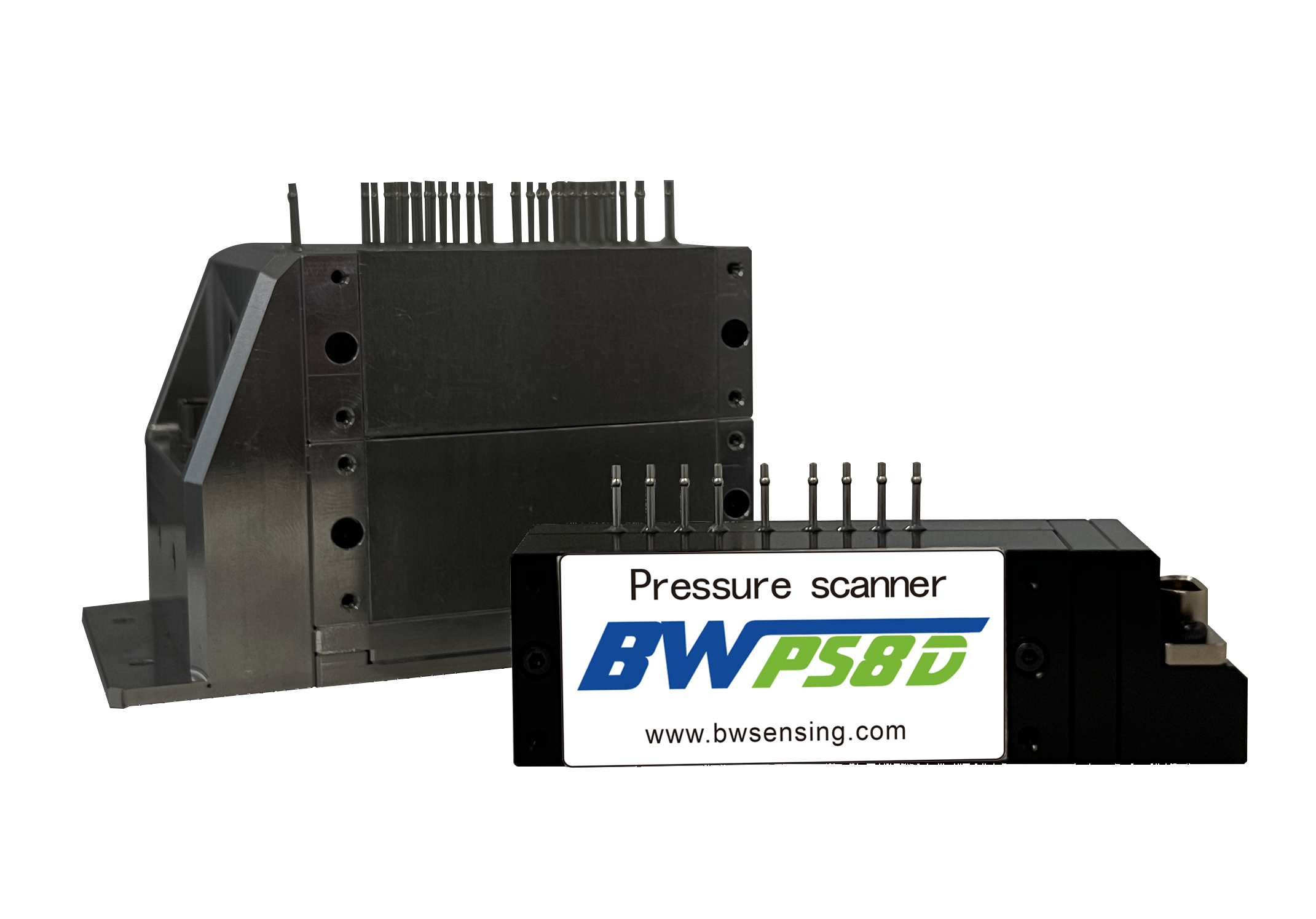

BW-PS8D Series 64 channel high precision Pressure Scanning Valve
| Lugar de origen | PORCELANA |
|---|---|
| Nombre de la marca | BWSENSING |
| Número de modelo | Serie BW-PS64D |
| Cantidad de orden mínima | 1 |
| Tiempo de entrega | 15 días hábiles |
Éntreme en contacto con gratis las muestras y los vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
Descripción de producto
INTRODUCTION:
BW-ps64d pressure scanning valve is a 64 channel scanning output device with a differential pressure pressure test range of 120kPa, which can measure the multi-point pressure values of UAV and wind tunnel environment. This product has 64 groups of test nozzles to output the pressure values in scanning mode, and the maximum speed can reach 200Hz. The device can directly output the pressure value in digital mode, eliminating the converter accessories required by traditional analog equipment, and its accuracy can stably reach 0.05% FS of total range.
Bw-ps64d adopts high-quality and reliable differential pressure type film pressure sensing chip, and ensures the measurement accuracy through algorithm. Through various compensations such as pressure correction system, nonlinear compensation, temperature compensation and drift compensation, the error caused by interference can be greatly eliminated and the product accuracy level can be improved. Bw-ps64d is a fully autonomous digital pressure scanning valve in small volume, which can be easily integrated into the user's system.
|
Pressure Index |
Range | Differential pressure 120kPa |
| Accuracy |
0.05%FS 0.05%FS 0.1%FS |
|
|
Zero Point Offset
|
＜ 0.05 %FS | |
| Temperature zero return difference(42h) | 0.02uV/V | |
| Overvoltage performance | 2MPa | |
| Physical Characteristics | Size | L84.5*W42*H41.6(mm) |
| Net Weight | 250g | |
| Interface | Output Frequency | 5~200Hz |
| Baud rate of serial communication | 2000000 | |
| Digital output format | ASCII & HEX | |
| Pressure Chip Test Stability | Load Static Voltage Characteristic | ≤ 0.03 ±%FS/10MPa |
|
Long-term Stability (1000h,135℃) |
±5uV/V | |
|
Nonlinearity
|
≤ 0.3±%FS | |
| MTBF | ≥3000 hs/time | |
| Working Temperature |
-20℃～+70℃
|
|
