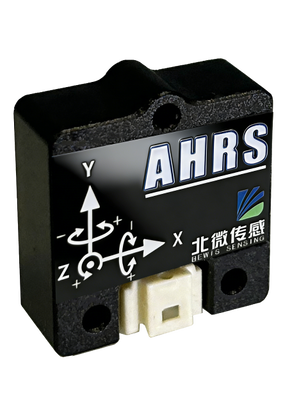

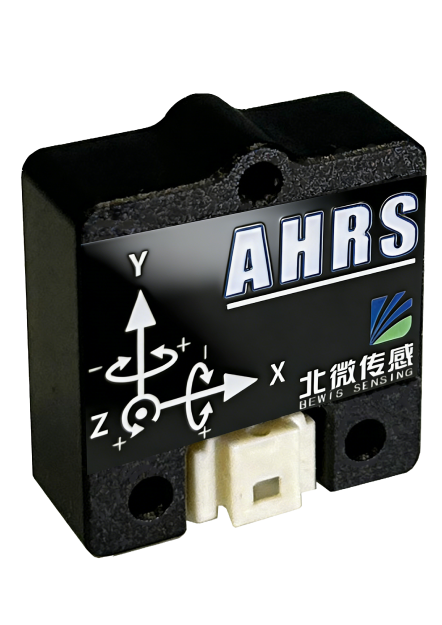

DMC630 Small Size High Precision Attitude Heading Reference System

  • DMC630 Small Size High Precision Attitude Heading Reference System
Nombre de la marca BWSENSING
Número de modelo DMC630
Cantidad de orden mínima 1
Precio contact us
Tiempo de entrega 10 días hábiles
Condiciones de pago T/T, L/C

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Deja un mensaje
Descripción de producto

DMC630 high-precision heading reference system adopts industrial grade microcontroller with high reliability and strong anti-interference ability and high-precision magnetic sensor and driver chip. It also integrates the fast calibration algorithm and anti-interference algorithm independently developed by BeiMicro Sensing, so that it can move in space at will and carry out magnetic field calibration to resist short-time magnetic interference. This product uses a three-axis accelerometer and gyroscope to compensate for the tilt angle, making it able to provide accurate heading data even in extremely harsh environments.

This product comes with IAP upgrade function. Subsequent functions and interfaces will be upgraded through IAP after the programme is updated. It can be customized according to customers' requirements, and can be very conveniently and quickly integrated into various products with electronic compass functions.

Azimuth Angle







 Measuring range   0~360°
  Accuracy   ≤ 1° (RMS) after spatial calibration
  Resolution   0.1°
  Repeatability   0.5° (RMS)

Pitch angle







 Measuring range   ±90°
  Accuracy   ≤0.2° (RMS)
  Resolution   0.05° (RMS)
  Repeatability   0.05° (RMS)
Roll angle Measuring range   ±180°
  Accuracy   ≤0.2° (RMS)
  Resolution   0.05° (RMS)
  Repeatability   0.05° (RMS)
Range Accelerometer range   ±4g
  Gyroscope range   ±500°/s
Environments Baud rate   9600~460800 (default 9600)
User calibration procedure Calibration   16-point calibration
Output frequency Raw data mode   Up to 1000HZ
  Solution mode   Up to 500HZ
Parameter Accelerometer Gyroscope Magnetometer
Range ±8 g ±500 (optional ±1000) °/s ±2 Gs
Noise Density 60 µg/√Hz 5 mdps/√Hz 1 mGauss/√Hz
Bandwidth 539 Hz 539 Hz -
Bias Stability (10s Averaging) 0.2 mg 16 °/h -
Bias Stability (Allan Variance) 40 µg 4 °/h -
DMC630 Small Size High Precision Attitude Heading Reference System 0
